Every time the optimum
temperature transmitter

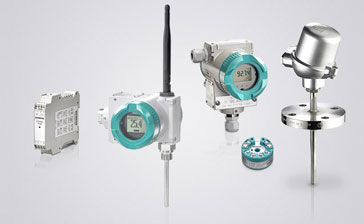

Whatever your temperature transmitter requirements, our SITRANS T temperature measurement devices provide high precision, are intrinsically safe, and connect to a wide range of signal sources. The SITRANS T temperature transmitter portfolio includes sensors, transmitters for head, rail and field mounting, and complete measuring points.

Temperature Measurement

TM150

Description

Controller SIPART DR 24 The Lucenline TM150 Temperature Transmitter integrates a temperature sensor (PT100) and the signal process circuit for industrial processes that require monitoring the temperature of a liquid or gas. The TM150 generates a 4-20mA signal linear to the temperature. The TM150-D with LED is available for local display application.

Detail

 Display(only for TM150-D)
 LCD or LED
 Reading range -1999 to 9999
 Measurement
 Range -50°C to150°C
 Accuracy 0.5°C
 Temperature drift ± 0.025%/°C
 Time-varying drift < ± 0.5%FS/year
 Electrical
 Power 24V DC±10%
 Current Output 4-20 mA output
 Maximum loop impedance 0~500Ω
 General
Enclosure IP67 (TM150-G), IP65 (TM150-D)
 Wetted material 316ss
 Process connection 3/4 NPT
 Ambient Conditions
 Ambient temperature(TM150-G) -40 °C to 85 °C (-40 °F to 185 °F)
 Ambient temperature(TM150-D) -10 °C to 85 °C (14 °F to 185 °F)

Benefits

  • 2-wire loop powered, standard 4-20mA output
  • High accuracy, high anti-interference ability
  • Long term stability, maintenance free
  • Transmission distance up to 1000m
