Reliable, precise level measurement

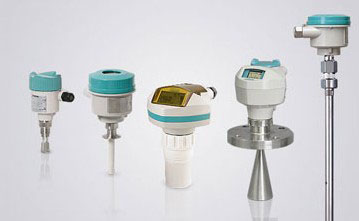

We offers a unique and comprehensive range of contacting and non-contacting instrumentation for point level and continuous level measurement. Our intelligent level measurement devices are characterized by extreme precision and reliability, proven in countless installations in the process industry worldwide.

LU182

Description

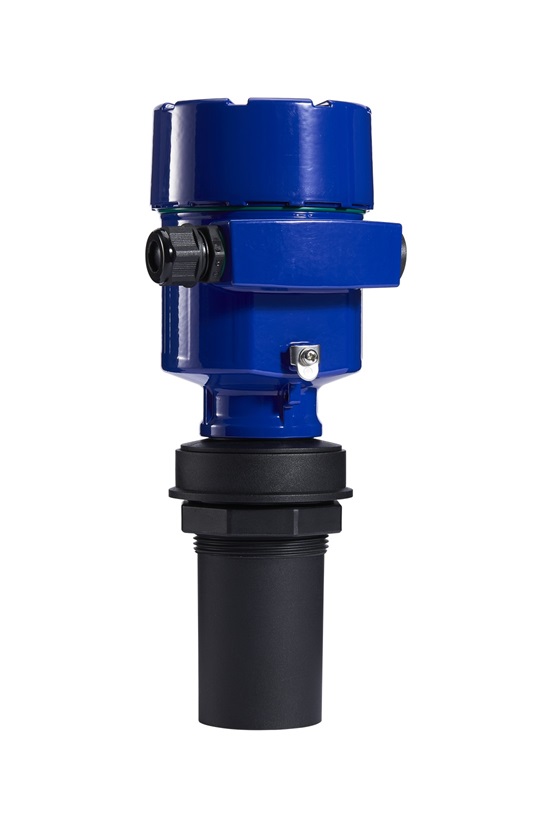

LU182 LU182 is Lucenline’s new generation ultrasonic level transmitter. It is a two-wire loop-powered level transmitter (four-wire available as an alternative). LU182 is not only applicable to the liquid level, volume and flow rate measurement for liquids in storage tanks and open-mouthed containers, but also applicable to the level measurement of certain granular materials.

Detail

 Display
  LCD
 Measurement
 Range 4m/13ft(liquid): LU182-1 series
8m/26ft(liquid): LU182-3 series
10m/33ft(liquid): LU182-5 series
15m/49ft(liquid): LU182-7 series
 Dead zone 0.25m: LU182-1 series
0.3m: LU182-3 series
0.4m: LU182-5 series
0.5m: LU182-7 series
 Accuracy ±0.2% of the full range
 Resolution 1mm
 Temperature compensation Full-range automatic compensation
 Beam angle 5°: LU182-1/3/5 series
3°: LU182-7 series
 Measurement interval 2s minimum
 Power and Output
 Power supply 24VDC, 220VAC power supply is available as an alternative
 Output 4-20 mA, HART protocol is available as an alternative
 Power consumption <0.55W
 Environmental conditions
 Pressure range <1 bar
 Temperature range -40°C to 70°C (-40 °F to 158 °F)
 Relative humidity <95%
 Materials
Wetted Parts Glass-fiber reinforced polyamide, or PVDF
 Transmitter housing Aluminum, surface spray coating
 Protection rating IP67

Benefits

  • Cutting-edge echo processing technology
  • False echo suppression function
  • Continuous liquid level measurement up to 15m/49ft
  • Automatic temperature compensation for sound velocity
  • Non-contact measurement, maintenance free
  • User-friendly menu interface, quick calibration
  • Small beam angle
  • High SNR
