Reliable, precise conductivity/
resistivity measurement

nstalled in many measurement applications in industrial processes and in systems engineering and other areas, the CE30/C5100 series is your solution for conductivity/resistivity measurement. Our intelligent measurement devices are characterized by outstanding precision and reliability, proven in countless installations in the process industry worldwide.

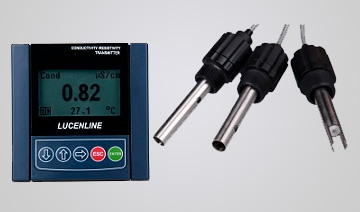

C5100 Conductivity/Resistivity Transmitter

Description

Controller SIPART DR 19The C5100 conductivity/resistivity transmitter is a 2-wire transmitter designed for process conductivity/resistivity monitoring, measurement and control applications.

Detail

 Display
 LCD LCD: 128*65 dot matrix, figure or alphabet: 12x8, 28x15, 32x18, etc.
 Update rate 1 second.
 Contrast User selected, 5 levels
 Measurement
 Conductivity 0.05 to 500,000 μS/cm
 Resistivity 1KΩ•cm to 18.3MΩ•cm
 TDS 0.023 to 200,000 ppm
 Accuracy ±0.5% of reading
 Repeatability* ±0.05% of span
 Temperature Drift* Zero and Span: ± 0.02% of span per°C
*These performance specifications are typical at 25°C

 Electrical
 Power 19-48VDC, regulated, 30mA max
 Current Output Isolated 4-20 mA output with 0.004 mA (12-bit) resolution
Update rate: 1 second
Max Loop Impedance: 250Ω@24V; 600Ω@31V; 1500Ω@48V
 Memory Non-volatile: All user settings are retained indefinitely without battery backup
 Open-Collector Output Isolated, 50 mA sink, 40 VDC maximum pull-up voltage
The OC output can be configured to be one of three modes below:
High or low mode; proportional pulses
 Ambient Conditions
 Operation -10°C to 70°C (14°F to 158°F); 0-95% relative humidity, non-condensing
 Transport/storage -15°C to 80°C (5°F to 176°F); 0-95% relative humidity, non-condensing

Benefits

  • Large LCD display
  • Versatile sensor capability
  • Friendly menu-guided operation
  • Isolated 4-20 mA analog output
  • Real 2-wire system power / loop output
  • NEMA 4X/IP65 enclosure
  • Password-protected access
  • Installation flexibility
  • Display choices of μS, mS, KΩ, MΩ, PPM (TDS)
  • Auto temperature compensation
  • Output options of conductivity or temperature signal transmission
