Description

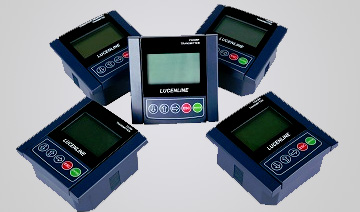

The Lucenline P3100 PH/ORP transmitter is a 2-wire transmitter designed for industrial process monitoring, measurement, and control applications.
Detail
Display| LCD | 128*65 dot matrix, figure or alphabet: 12x8, 28x15, 32x18, etc. |
| Update rate | 1 second. |
| Contrast | User selected, 5 levels |
| Compatibility | Lucenline PE20/OE20 PH and ORP electrodes |
| pH | 0.00 to 14.00 |
| ORP | -2000mv~+2000mv |
| Temperature | PT1000: 0~60°C (32~140°F) |
| Accuracy | ±0.5% of reading |
| Repeatability* | ±0.05% of span |
| Temperature Drift* | Zero and Span: ± 0.02% of span per°C |
Electrical
| Power | 19-48VDC, regulated, 30mA maximum |
| Current Output | Isolated 4-20 mA output with 0.004 mA (12-bit) resolution Update rate: 1 second Maximum loop impedance: 250Ω@24V; 600Ω@31V; 1500Ω@48V |
| Memory | Non-volatile: All user settings are retained indefinitely without battery backup |
| Open-Collector Output | Isolated, 50 mA sink, 40 VDC maximum pull-up voltage The OC output can be configured to be one of three modes below: High mode, Low mode, Proportional pulses |
| Operation | -10°C to 70°C (14°F to 158°F); 0-95% relative humidity, non-condensing |
| Transport/storage | -15°C to 80°C (5°F to 176°F); 0-95% relative humidity, non-condensing |
Benefits
- Large LCD display
- Versatile sensor capability
- Friendly menu-guided operation.
- Isolated 4-20 mA analog output.
- Real 2-wire system power / loop output
- NEMA 4X/IP65 enclosure.
- Password-protected access.
- Installation flexibility
- Auto temperature compensation
- Output options of pH or temperature signal transmission
